- General Information
- Manufacturer
- Allied Telesis, Inc
- Manufacturer Website Address
- http://www.alliedtelesis.com
- Brand Name
- Allied Telesis
- Product Series
- x320
- Product Type
- Layer 3 Switch

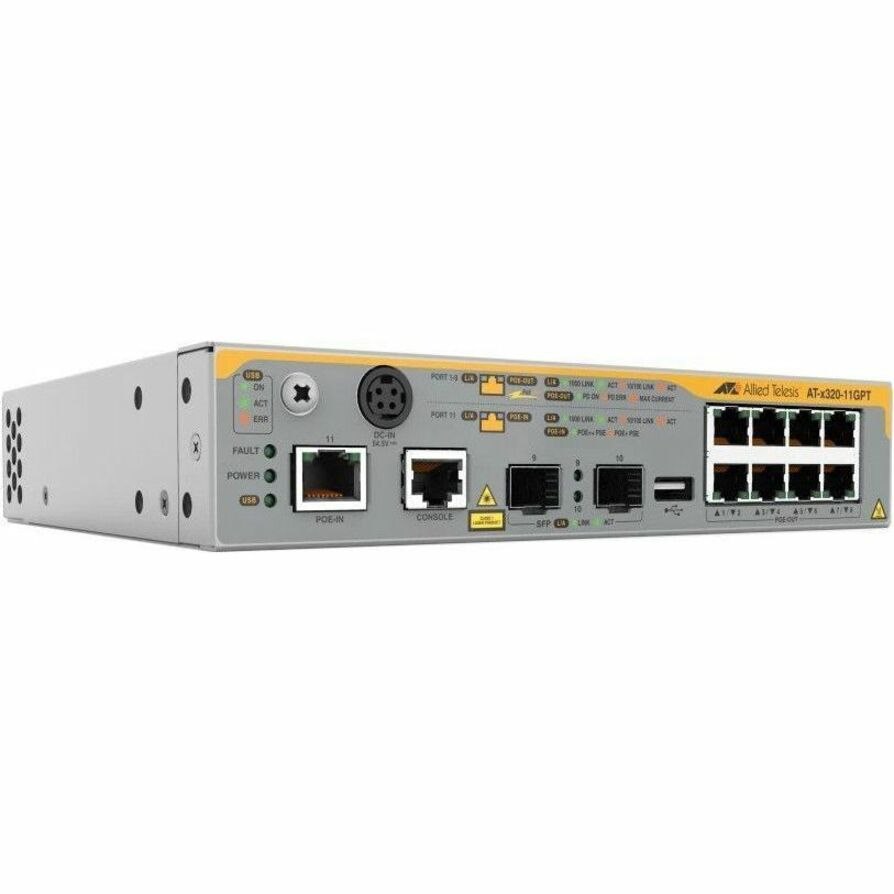

x320 Series
Gigabit PoE++ Layer 3 Managed Switches
Flexible Power over Ethernet switches with capabilities that support IoT device connectivity in smart buildings and converged business environments.
Enable today's smart buildings with flexible PoE to connect and power devices such as high-resolution security cameras, wireless APs, lighting controllers, and more
Flexible deployment of network edge switches and IoT devices, with PoE pass-through that powers both the edge switch and connected end-points
Provide PoE capacity and resilience with triple external PSUs available for distribution switches, while also simplifying UPS power redundancy of the network
Extend network layout, with IoT devices able to be connected and powered up to 200 meters from the PoE distribution source
Reduce costs and automate network and device management with Allied Telesis Autonomous Management Framework Plus (AMF Plus)
- Technical Information
- Features
- Fanless
- Plug and Play
- Interfaces/Ports
- Total Number of Network Ports
- 9
- Uplink Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x 10/100/1000BASE-T RJ-45 PoE+ Network Port
- 1 X 10/100/1000-T PoE-in RJ-45 Network Port
- 2 x Gigabit Ethernet SFP Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate
- 125 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 2.0
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1x
- IEEE 802.2
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3az
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.1p
- IEEE 802.1ag
- IEEE 802.1AX
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.3ad
- IEEE 802.1Q
- IEEE 802.1v
- IEEE 802.3ac
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 62 W
- Power Source
- PoE
- PoE+
- Power Adapter
- Power Consumption
- 22 W
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- DIN Rail Mountable
- Compact
- Desktop
- Height
- 42.4 mm
- Width
- 209.8 mm
- Depth
- 179.8 mm
- Weight (Approximate)
- 1.60 kg
- Miscellaneous
- Application/Usage
- IoT Devices
- Business
- Security Camera
- Wireless Access Point
- Network
- Enterprise
- IP Phone
- Certifications & Standards
- FIPS 140-2
- IPv6 Ready
- JITC
- UL60950-1
- CAN/CSA-C22.2 No. 60950- 1-03
- EN60950-1,
- EN60825-1,
- AS/NZS 60950.1
- : UL
- cUL
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- China Restriction of Hazardous Substances (China RoHS)
