- General Information
- Manufacturer
- Datalogic S.p.A
- Manufacturer Website Address
- http://www.datalogic.com
- Brand Name
- Datalogic
- Product Line
- Heron
- Product Series
- HD3100
- Packaged Quantity
- 3
- Product Type
- Barcode Scanner Kit
PERFORMANCE WITHOUT COMPROMISE

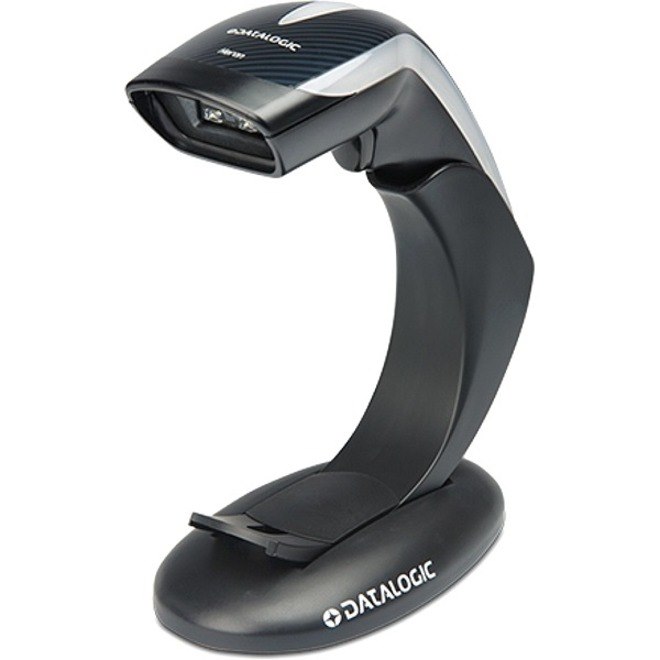

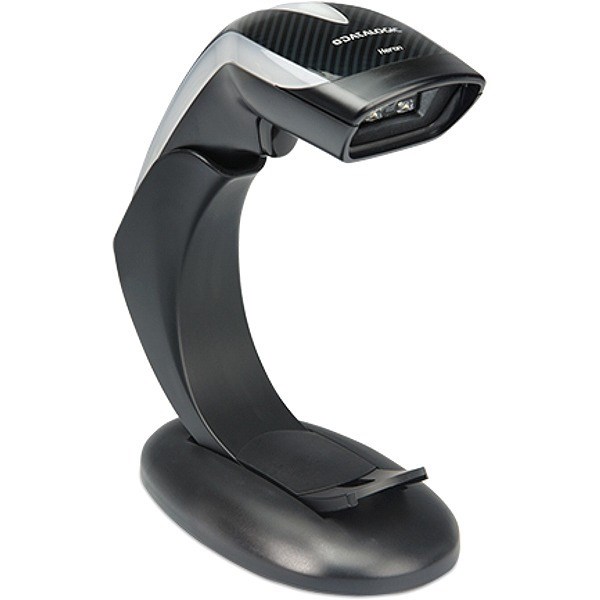

The Heron HD3430 2D area imager brings unmatched elegance along with the latest advanced 2D reading technology to the modern point-of-sale. The stylish silhouette of the new 2D area imager enriched with multiple color changing lights, innovative and modern design material, together with the audio speaker, amplifies the customer's brand experience at the point-of-sale.
NOW WITH 2D AND IMAGE CAPTURE
The Heron HD3430 2D area imager provides outstanding reading performance on 1D and 2D codes as well as image capture capabilities. Featuring the market's most efficient aiming and illumination systems, the Heron HD3430 2D area imager guarantees the operator's best suitability combined with an outstanding all-codes reading capability.
BEAUTY AND BRAND IDENTITY
The Heron HD3430 2D area imager differs from the usual color scheme of handheld devices by providing a stunning 'black' or 'white' color option, emphasizing the curving lines of the new enclosure. Additionally, the Heron imager features in-mold decorated top covers with a choice of 'Carbon Fiber' or 'Silver' design. This imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer's brand.
The HD3430 2D area imager is a fusion of the features your business needs, the fashionable style customers will love, the enticing allure of light and sound now with a full 2D reading capability.
- Technical Information
- Connectivity Technology
- Cable
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
- 1D / LINEAR CODES
- Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
- Aztec Code
- Aztec Mesas
- Data Matrix
- MaxiCode
- QR Code
- Micro QR Code
- China Han Xin Code
- Australian Post
- British Post
- Canadian Post
- China Post
- Japanese Post
- KIX Post
- Korea Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
- Image Sensor Type
- Imager
- Scan Rate
- 270 scan/s
- Scan Pattern
- Single Line
- Scanning Distance
- 400 mm
- Cable Type Included
- USB
- Stand Included
- Yes
- Reading Angle (Skew)
- 60°
- Reading Angle (Pitch)
- 65°
- Reading Angle (Roll)
- 360°
- Motion Tolerance
- 635 mm/s
- Maximum Ambient Light
- 100000 lux
- Drop Specification
- Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
- Minimum Print Contrast
- 15%
- Minimum Element Resolution (Code 39)
- 0.13 mm
- Minimum Element Resolution (DataMatrix)
- 0.38 mm
- Interfaces/Ports
- Host Interface
- USB
- Physical Characteristics
- Form Factor
- Handheld
- Color Family
- Black
- Product Color
- Black
- Height
- 152.4 mm
- Width
- 68.6 mm
- Depth
- 152.4 mm
- Weight (Approximate)
- 150 g
- Miscellaneous
- Additional Information
USB Cable separate
- Ingress Protection (IP) Rating
- IP40
- Application/Usage
- Industrial
- Retail
- Country of Origin
- Vietnam
- Environmentally Friendly
- Yes
