- General Information
- Manufacturer
- Elo Touch Solutions, Inc
- Manufacturer Website Address
- http://www.elotouch.com
- Brand Name
- Elo
- Product Type
- Fingerprint Reader

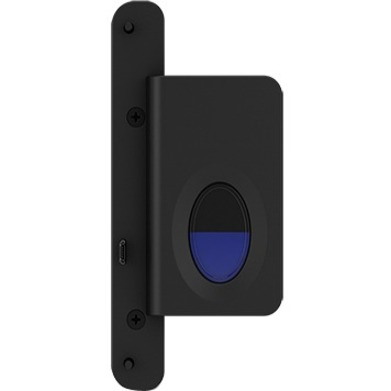

The Biometric Fingerprint Reader is a USB-powered device that optically scans the fingerprint when the user touches the glowing window. Optical technology gives the highest quality fingerprint scans and reliability.
- Technical Information
- Image Resolution (dpi)
- 512
- Interfaces/Ports
- USB
- Yes
- USB Standard
- USB 2.0
- Power Description
- Input Voltage
- 5 V DC
- Miscellaneous
- Additional Information
- Viewing Angle: Horizontal: ±70° or 140° total / Vertical: ±50° or 100° total
- Resolution: 512 dpi
- Colors: 8-bit gray level
- MTBF: 50,000 hours demonstrated
- Scan Capture Size: 4.6mm x 18.1mm
- Image Capture Speed: 100ms
- Electrostatic Discharge (ESD): Up to 19kV mounted in case
- Operating Temperature: 0°C to 40°C
- Compatibility
- Elo X-Series AIO POS Terminal
