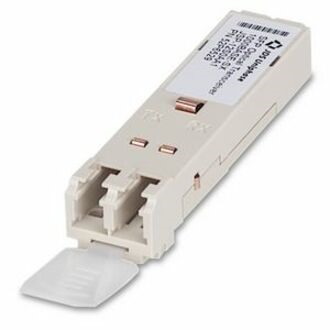

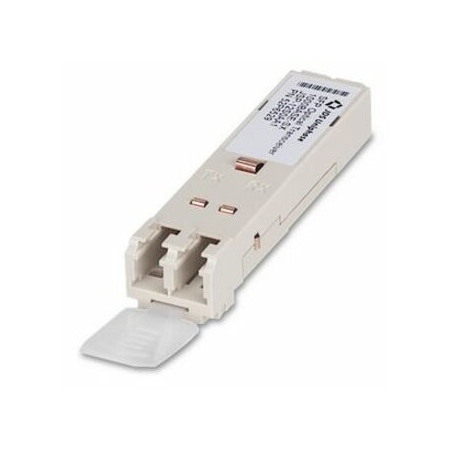

MGBIC-LC01 have a smaller form factor than classic GBICs, providing the ability to populate more Gigabit Ethernet ports. To meet each customer's unique needs.
- General Information
- Manufacturer
- Extreme Networks, Inc
- Manufacturer Website Address
- http://www.extremenetworks.com
- Brand Name
- Enterasys
- Product Line
- Matrix
- Product Type
- SFP (mini-GBIC)
- Technical Information
- Application/Usage
- Data Networking
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC 1000Base-SX LAN
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 1000Base-SX
- Maximum Distance Supported
- 550 m
- Maximum Data Transfer Rate
- 1
- Physical Characteristics
- Height
- 8.6 mm
- Width
- 13.9 mm
- Depth
- 53.5 mm
- Miscellaneous
- Additional Information
Flexible, high-performance connectivity with wire-speed switching and routing on every port
Fully integrate into Matrix E1 WS and GWS switches
Supports all Matrix E1 multilayer features and functionality to protect existing investments
Optical Specifications:
62.5 µm MMF:
Transmit Power (minimum): -9.5 dBm
Receive Sensitivity: -17 dBm
Link Power Budget: 7.5 dBm
50 µm MMF:
Transmit Power (minimum): -9.5 dBm
Receive Sensitivity: -17 dBm
Link Power Budget: 7.5 dBm
- Compatibility
- Matrix E1 Workgroup Switch and Gigabit Workgroup Switch
