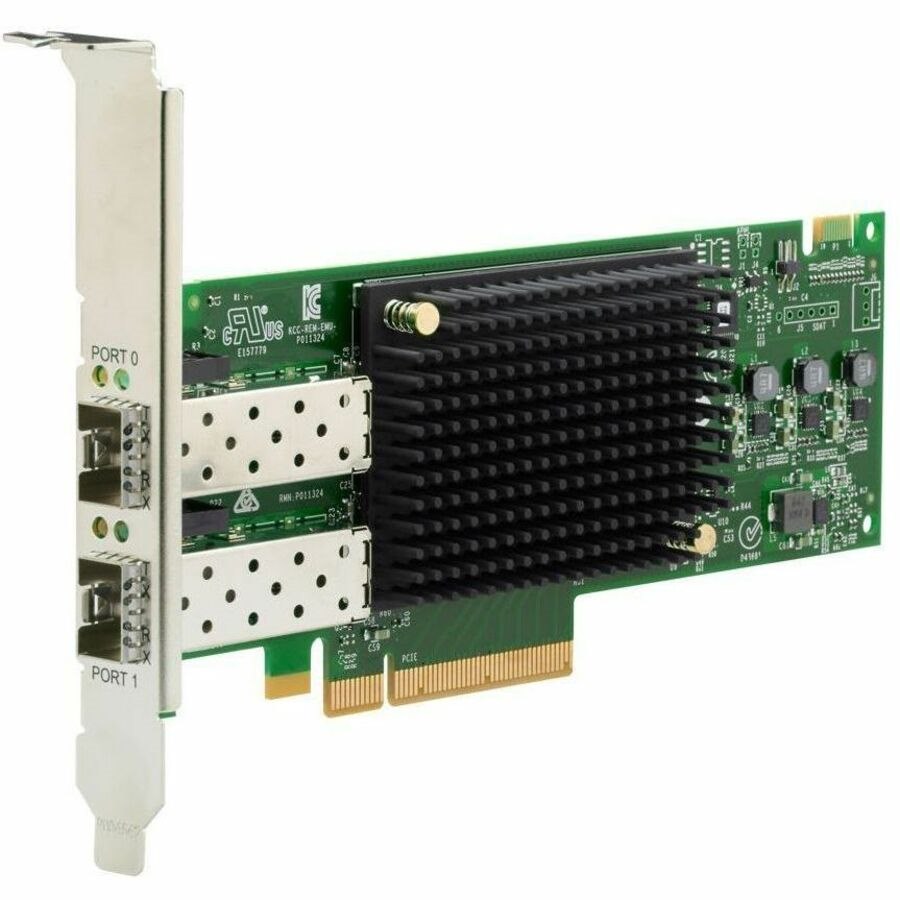

HPE SN1720E 64Gb 2-port Fibre Channel Secure Host Bus Adapter

  • Part: 1338810
  • Model: S4T09A
$5,155.00

Availability

Out of Stock

HPE SN1700 series 64Gb Fibre Channel Host Bus Adapter | Family Overview

A Fibre Channel Host Bus Adapter is a server peripheral designed to be installed in a server and allows the transport of data to a consolidated storage device like an HPE Flash Array. The Fibre Channel Host Bus Adapter is externally coupled to a Fibre Channel switch which builds a Fibre Channel network allowing many servers access to the shared storage array. With a Fibre Channel HBA installed in every participating server, the resulting configuration is called a Storage Area Network or SAN based on Fibre Channel. The HPE 64GFC Host Bus Adapters bring datacenter infrastructure components to a higher level of performance and efficiency with the ability to deliver twice the bandwidth performance of 32Gb HBAs. A 64GFC HBA purchased today is backward compatible with 32Gb and 16Gb storage networks and will protect future investments.

  • General Information
    • Manufacturer
    • Hewlett Packard Enterprise
    • Manufacturer Website Address
    • http://www.hpe.com
    • Brand Name
    • HPE
    • Product Type
    • Fibre Channel Host Bus Adapter
  • Warranty
    • Limited Warranty
    • 3 Year
    • Additional Warranty Information
    • 3-0-0 Three-year parts exchange warranty. Additional warranty protection can be purchased.

  • Technical Information
    • Total Number of Fibre Channel Ports
    • 2
    • Host Interface
    • PCI Express 4.0 x8
    • Features
    • Auto-negotiation
    • Quality of Service (QoS)
    • UEFI Support
    • Forward Error Correction (FEC)
  • Media & Performance
    • Media Type Supported
    • Optical Fiber
    • Fiber Optic Cable Core/Cladding Specification
    • 50 µm
    • Fiber Mode Supported
    • Multi-mode
    • Twisted Pair Cable Standard
    • Multi-mode
    • Data Transfer Rate
    • 64 Gbit/s
  • I/O Expansions
    • Total Number of Expansion Slots
    • 2
    • Expansion Slot Type
    • SFP+
  • Physical Characteristics
    • Form Factor
    • Plug-in Card
    • Height
    • 68.8 mm
    • Width
    • 167.6 mm
    • Depth
    • 10.9 mm
  • Miscellaneous
    • Compatibility
      • HPE ProLiant platforms
      • HPE Superdome Flex Servers
      • HPE Cray Supercomputing
      • HPE Alletra Storage Servers
    • Operating System Compatibility
    • Red Hat Enterprise Linux 10 x64
    • Red Hat Enterprise Linux 9 x64
    • SUSE Linux Enterprise Server 15 x64
    • Windows Server 2025 x64
    • Windows Server 2022 x64
