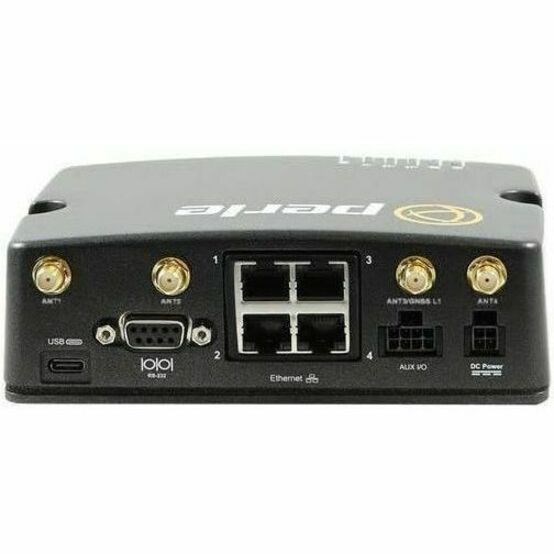

Perle IRG7440 Wireless Router

  • Part: 1329131
  • Model: 08000516
$4,288.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Perle Systems, Inc
    • Manufacturer Website Address
    • http://www.perle.com
    • Brand Name
    • Perle
    • Product Series
    • IRG7000
    • Product Type
    • Wireless Router

Perle IRG7000 5G Routers and Gateways have the most comprehensive set of features, functionality, and performance to provide primary or back-up 5G connectivity to remote infrastructure and assets. These ultra-low-power, rugged, high-performance Cellular Routers can be quickly and easily deployed using an intuitive web GUI. For advanced admin scripts, RESTFul API and CLI commands are also available.

Perle IRG7000 5G Routers provide fast, secure, and reliable managed 5G network connectivity where wired options are impossible to deploy or require a backup. This is crucial for enabling a wide range of applications while ensuring the highest degree of security to protect the integrity of critical services. Reduce the cost of downtime and service calls, and bringing distributed sites online faster. With support for Data, SMS, Voice, and Video, an IRG7000 and can be integrated into any enterprise cloud, building, industrial, or mobile location network infrastructure.

  • Building and process automation controllers, Internet of Things (IoT)
  • Smart grid assets (meters, switches, controllers), Telco infrastructure controllers
  • SCADA, Distribution management systems, Remote data loggers, flow meters, sensing equipment
  • Digital signage, ATMs, POS, Kiosks, Temporary "pop-up" stores
  • Video surveillance controllers, IP cameras, Mobile hotspots
  • Fleet management, GPS/GNSS Location tracking, Taxis, Public Service Vehicles, vehicle area networking (VAN)
  • Public Service Vehicles, First responders, Command Centers
  • Transit systems, Buses, Metro Subways, Railways

Edge Routers with Enterprise-Grade Routing Capabilities

Perle does not charge any annual subscription or license fees to maintain operation, download software updates, or access features. IRG7000 routers have all the of the routing functionality found in the most advanced enterprise routers included in the base price of the product. Extensive routing protocol support means they can be easily deployed in hierarchical or large mesh network structures. A fast CPU and lots of memory ensure the router can handle a consistent and heavy workload all day long.

  • RIP, RIPv2, RIPng, OSPFv1/2/3, BGP-4, VRRP
  • When BGP peering with multiple ISPs, the IRG5500 delivers carrier-grade routing performance capable of handling the full Internet routing table
  • IPv4 & IPv6
  • OpenVPN & IPSec VPN
  • DHCP & DHCPv6
  • IP Passthrough for deployments requiring the router to operate in Gateway or Bridge mode
  • Route between any interface (Cellular, Ethernet, USB, or serial RS232)
  • Reduce unwanted network traffic by creating collision and/or broadcast domains
  • Warranty
    • Limited Warranty
    • Lifetime

  • Technical Information
    • MU-MIMO Technology
    • Yes
    • Processor Core
    • Dual-core (2 Core)
    • Processor Speed
    • 1.20 GHz
    • Memory Technology
    • DDR4 SDRAM
    • Standard Memory
    • 1 GB
  • Wireless Specifications
    • Cellular Generation
    • 5G
    • Cellular Data Connectivity Technology
    • HSPA
    • HSPA+
    • LTE
  • Interfaces/Ports
    • Total Number of Network Ports
    • 4
    • Number of Network (RJ-45) Ports
    • 4
    • USB
    • Yes
    • USB Standard
    • USB Type C
  • Network & Communication
    • Ethernet Technology
    • Gigabit Ethernet
    • SIM Size Supported
    • Mini
  • Storage
    • Flash Memory Capacity
    • 4 GB
    • Storage Media
    • MultiMediaCard (MMC)
  • Physical Characteristics
    • Product Material
    • Die-cast Aluminum
    • Form Factor
    • DIN Rail Mountable
    • Panel-mountable
    • Wall Mountable
    • Height
    • 45 mm
    • Width
    • 146.1 mm
    • Depth
    • 98.8 mm
    • Weight (Approximate)
    • 580 g
  • Miscellaneous
    • Package Contents
      • IRG7440 Wireless Router
      • Power Supply
    • Certifications & Standards
      • FCC 47 Part 15 Subpart B, Class A
      • ICES-003 Issue 6 Class A (Canada)
      • ANSI C63.4 Class A (Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of9 kHz to 40 GHz)
      • EN61000-3-2: 2014 (Limits for Harmonic Current Emissions)
      • EN61000-3-3: 2013 (Limits of Voltage Fluctuations and Flicker)
      • EN 61000-6-4: 2007 + A1: 2011
      • CISPR 32:2015/EN 55032:2015 Class A (Electromagnetic compatibility of multimedia equipment - Emission requirements)
      • CISPR 35:2016/EN 55035:2017 (IR)
      • EN 61000-4-2:2009 (ESD) +/-8 kV (Contact), +/-15 kV (Air) Operating mode: powered on
      • EN 61000-4-3: 2006 + A1:2007 + A2:2010(RS)
      • EN 61000-4-4:2012 (EFT) 2 KV (Criteria A)
      • EN 61000-4-5:2014+AMD1:2017 (Surge) 2KV (line to earth), 1.5KV (line to line)
      • EN 61000-4-6: 2013 (CS)
      • EN 61000-4-8: 2009 (PFMF)
      • EN 61000-4-9: 2016 (PMF)
      • EN 61000-4-11: 2004 + A1:2017
      • EN 61000-4-16
      • EN 61000-6-2 (General Immunity for Industrial Environments)
      • CE Mark
      • UL/EN/IEC 62368-1 (including CB)
      • CAN/CSA C22.2 No. 62368-1-14
      • EN 301 489-1:2019 Ed2.2.3
      • EN 301 908-25 (Imt Cellular Network: Essential requirements)
      • EN 62311:2020 (Human exposure restrictions for radio frequency electromagnetic fields)
      • FCC/ICES
      • RED
      • PTCRB/CTIA
      • CE
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS) 3
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • Waste Electrical and Electronic Equipment Directive (WEEE)
