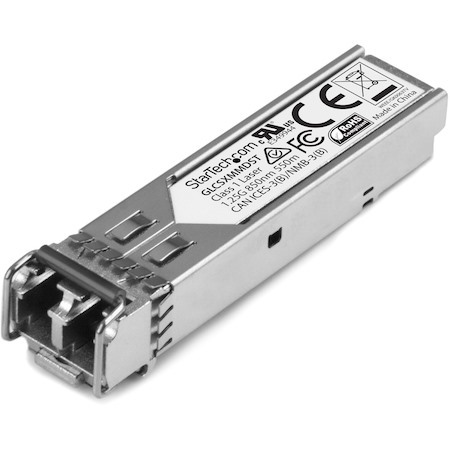

The GLCSXMMDST is a Cisco GLC-SX-MMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
- Wavelength: 850 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 550 m (1804 ft)
- MTBF: 3,381,761 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): No
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- SFP (mini-GBIC)
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Application/Usage
- Data Networking
- Optical Network
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC Duplex 1000Base-SX Network
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Ethernet Technology
- 1.25 Gigabit Ethernet
- Network Technology
- 1000Base-SX
- Physical Characteristics
- Form Factor
- Hot-pluggable
- Hot-swappable
- Height
- 12.7 mm
- Width
- 12.7 mm
- Depth
- 55.9 mm
- Weight (Approximate)
- 17 g
- Miscellaneous
- Compatibility
- MSA or Cisco compliant SFP port
Cisco Firepower Switches:
- ASR920
- IE2000
- IE4000
- ASR1000
