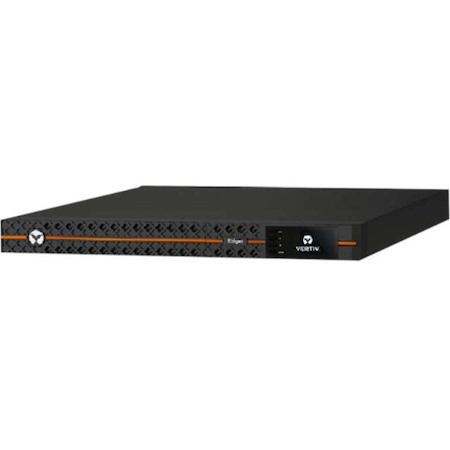

VERTIV EDGE-1500IRM1U 1500VA Rack-mountable UPS

  • Part: 1002487
  • Model: 01202570
$1,277.00

Availability

In Stock

Reliable UPS Protection At The All-Important Network Edge

The network edge is becoming increasingly important as companies seek to take advantage of Internet of Things, cloud computing and other applications that require localized compute power, networking services and data storage | all with low latency. Distributed and edge data centers are now no less important to business success than large centralized data centers, so must be afforded similar power protection.

The Vertiv™ EDGE line interactive UPS family is intended for distributed IT and edge applications that require reliable, efficient power protection for server and networking equipment. It comes in mini-tower, rack tower and rack-mount form factors, with capacities ranging from 500VA to 3000VA. Each model has a 0.9 output power factor (PF), enabling them to protect larger loads than competing models of the same capacity.

Vertiv EDGE UPSs support up to 6 extended-run battery cabinets (EBCs), providing more runtime at full load than comparable competing UPSs. Auto-detect features make the EBCs easy to add and configure.

Vertiv EDGE UPSs are also highly manageable, with a colorful, graphical LCD screen for easy, intuitive on-site management, as well as optional SNMP support. Vertiv EDGE is compatible with the free Vertiv Power Assist software for local UPS status and shutdown of IT loads connected locally.

A standard 2-year warranty for both electronics and batteries protects your UPS investment.

  • General Information
    • Manufacturer
    • Vertiv
    • Manufacturer Website Address
    • http://www.vertiv.com/
    • Brand Name
    • VERTIV
    • Product Line
    • EDGE
    • Product Type
    • Line-interactive UPS

  • Technical Information
    • AVR
    • Yes
    • Plug/Connector Type
    • IEC 60320 C14
    • Receptacle Type
    • IEC 60320 C13
    • Receptacle Detail
    • 6 x IEC 60320 C13
    • Transfer Time
    • 4 ms
    • Phase
    • Single Phase
    • Application/Usage
    • Server
    • Network
    • Critical System
    • Data Center
    • Business
    • IOT Device
    • Data Storage
    • Edge Computing
  • Power Description
    • Load Capacity (VA)
    • 1.50 kVA
    • Load Capacity (Watt)
    • 1.35 kW
    • Input Voltage
    • 230 V AC
    • Output Voltage
    • 200 V AC
    • 208 V AC
    • 220 V AC
    • 230 V AC
    • 240 V AC
    • Input Frequency
    • 65 Hz
    • Waveform Type
    • Pure Sine Wave
    • Surge Energy Rating
    • 624 J
  • Management
    • Network Management
    • SNMP/Webcard
    • Alarm
    • Yes
  • Controls/Indicators
    • Status Indicators
    • LCD Display

  • Interfaces/Ports
    • Serial Port
    • No
    • Network (RJ-45)
    • No
    • USB
    • Yes
    • EPO Port
    • Yes
    • USB (HID Compliant) Port
    • Yes
  • Battery Information
    • DC System Voltage
    • 36 V DC
    • Number of Batteries
    • 6
    • Battery Characteristics
    • Valve-regulated, Non-spillable
    • Battery Chemistry
    • Lead Acid
    • Battery Size
    • 6V
    • Battery Capacity
    • 9000 mAh
    • Backup/Run Time (Full Load)
    • 5 Minute
    • Backup/Run Time (Half Load)
    • 15 Minute
    • Number of External Battery Cabinets
    • 6
    • Battery Life
    • 5 Year
    • Typical Battery Recharge Time
    • 3 Hour
    • Hot Swappable
    • Yes
  • Environmental Conditions
    • Maximum Operating Temperature
    • 40°C
    • Storage Temperature
    • -25°C - 55°C
    • Maximum Operating Elevation
    • 3 km
    • Sound Emission
    • 45 dB
  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Height
    • 44 mm
    • Width
    • 438 mm
    • Depth
    • 600 mm
    • Rack Height
    • 1U
    • Form Factor
    • Rack-mountable
    • Weight (Approximate)
    • 23 kg
  • Miscellaneous
    • Software Included
    • Power Assist
    • Energy Star
    • No
    • Country of Origin
    • China
    • TAA Compliant
    • No
    • Environmentally Friendly
    • Yes
