- General Information
- Manufacturer
- Datalogic S.p.A
- Manufacturer Website Address
- http://www.datalogic.com
- Brand Name
- Datalogic
- Product Line
- PowerScan
- Product Type
- Barcode Scanner
The PowerScan 9500 family of imagers is targeted to be the most suitable solution for all applications in warehouses, transportation & logistics and manufacturing. The omnidirectional reading capability combined with the snappiness and the depth-of-field features allow the PowerScan 9500 imagers to be faster and therefore, a preferred solution over standard laser scanners.

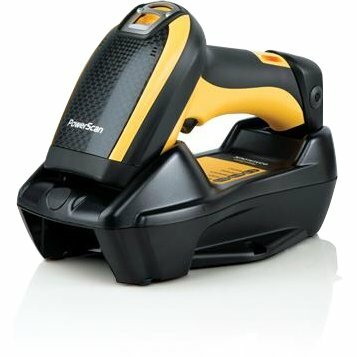

The PowerScan PBT9500 area imager is a mobile scanner based on Bluetooth® wireless technology. It includes all of the scanning features associated with the PowerScan 9500 family and provides the freedom of mobility to move around a warehouse without the entanglement of cables.
- Technical Information
- Connectivity Technology
- Wireless
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
- 1D / Linear Codes:
- Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Micro QR Code
- QR Code
- Australian Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Planet Code
- Portuguese Post
- Postnet
- Royal Mail Code (RM4SCC)
- Swedish Post
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
- Image Sensor Type
- Imager
- Maximum Scan Resolution
- 0.10 mm
- Depth of Field
- 2cm - 6cm@2.5mil
- 2cm - 6cm@4mil - Data Matrix
- 2cm - 20cm@10mil - Data Matrix
- 2cm - 30cm@10mil - PDF417
- 3cm - 60cm@13mil
- 3cm - 70cm@20mil
- 3cm - 110cm@40mil
- Scan Pattern
- Omni-directional
- Network & Communication
- Bluetooth
- Yes
- Power Description
- Input Voltage
- 10 V DC
- 30 V DC
- Power Source
- Battery
- Battery Information
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Maximum Number of Scans per Full Charge
- 30000
- Physical Characteristics
- Form Factor
- Handheld
- Product Color
- Yellow
- Black
- Weight (Approximate)
- 380 g
- Miscellaneous
- Additional Information
USB Cable separate
- Certifications & Standards
- Laser Classification:
- CDRH Class II: IEC 60825 Class 2
- IEC 62471 Class 1 LED
- Environmentally Friendly
- Yes
