- General Information
- Manufacturer
- Datalogic S.p.A
- Manufacturer Website Address
- http://www.datalogic.com
- Brand Name
- Datalogic
- Product Line
- PowerScan
- Product Series
- 9500-DPM Evo
- Product Type
- Barcode Scanner

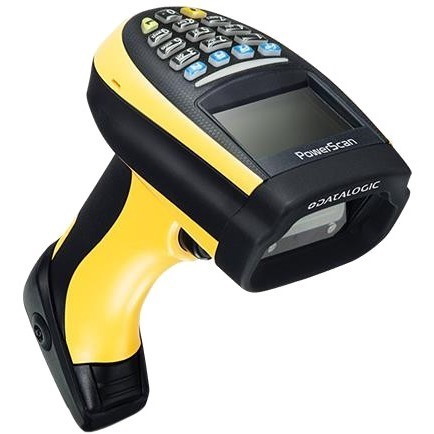

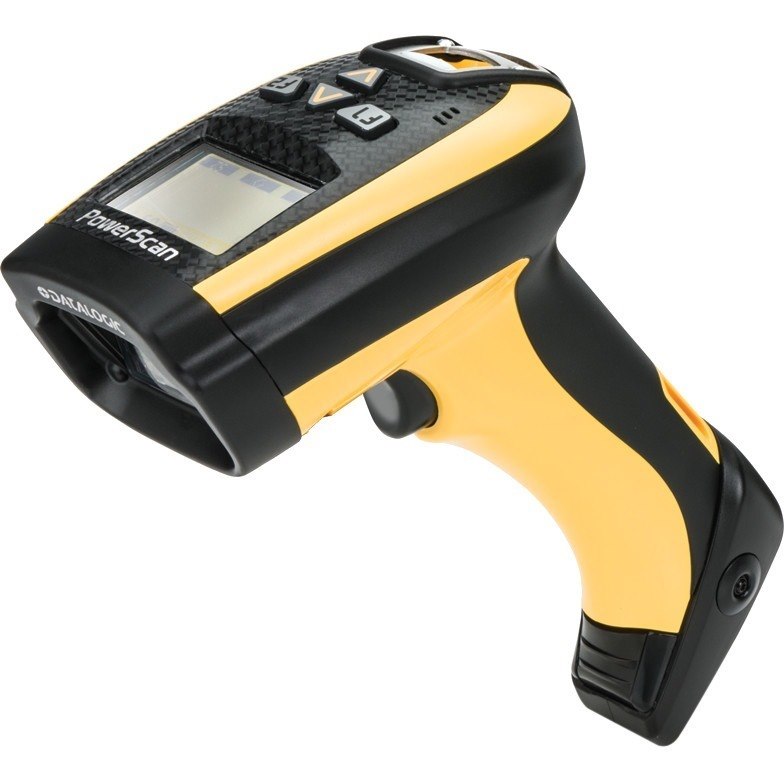

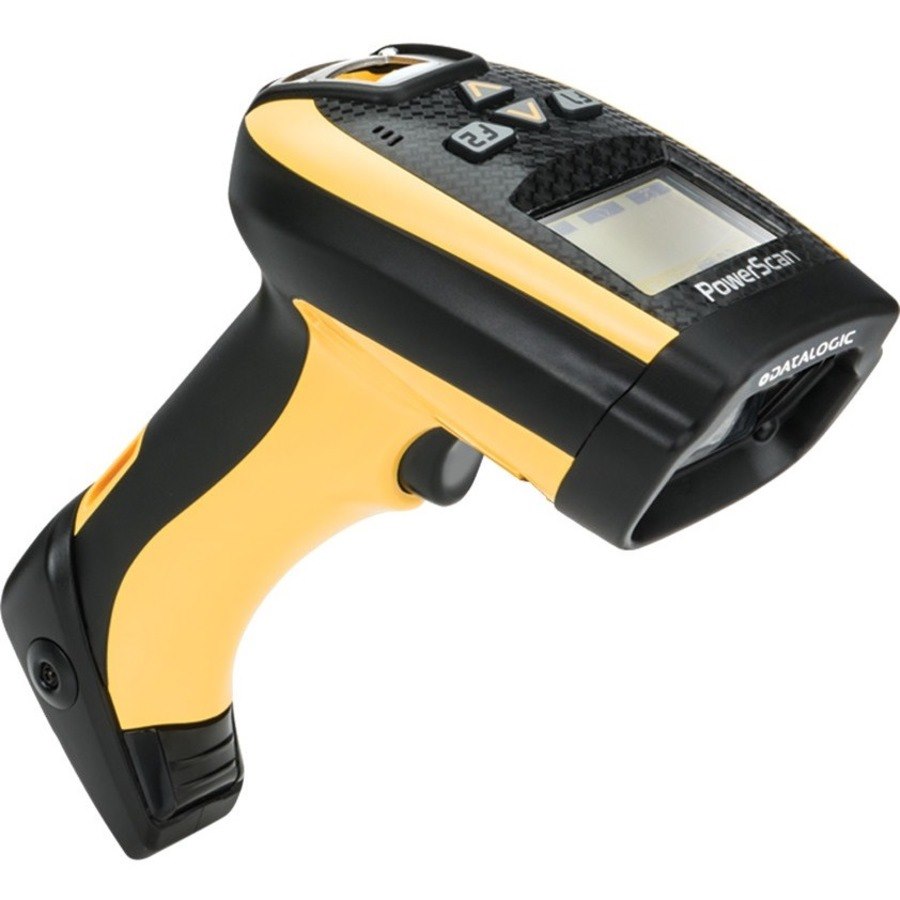

The PowerScan PM9500 area imager is a ruggedized cordless reader suitable for all demanding applications. It is equipped with a new generation of the Datalogic STAR Cordless System™, the proprietary radio from Datalogic, which further improves the outstanding features of versatility, ease-of-use and radio range.
The PM9500 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.
Long lasting battery life guarantees more than one shift of intensive scanning.
Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort. The PowerScan 9500 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.
The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.
- Technical Information
- Connectivity Technology
- Wireless
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
- 1D / LINEAR CODES
- Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Micro QR Code
- QR Code
- Australian Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Planet Code
- Portuguese Post
- Postnet
- Royal Mail Code (RM4SCC)
- Swedish Post
STACKED CODES
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
- Image Sensor Type
- Imager
- Network & Communication
- Radio Frequency
- Yes
- Physical Characteristics
- Form Factor
- Handheld
- Product Color
- Yellow
- Black
- Weight (Approximate)
- 400 g
- Miscellaneous
- Additional Information
USB Cable separate
- Environmentally Friendly
- Yes
