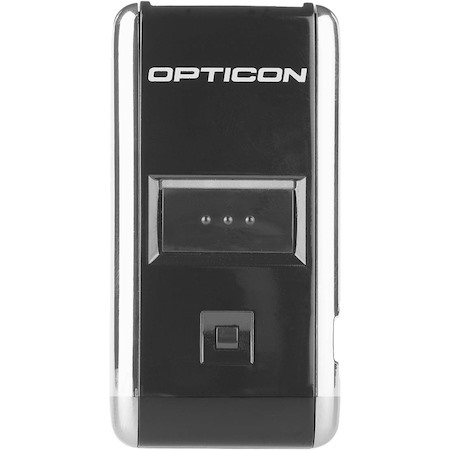

Opticon OPN-2001 Barcode Scanner

  • Part: 1167049
  • Model: OPN2001B-U
$263.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Opticon Sensors Europe
    • Manufacturer Website Address
    • http://www.opticon.com
    • Brand Name
    • Opticon
    • Product Type
    • Barcode Scanner

The OPN-2001 is simple, small and easy to take with you, taking scanning to another level of mobility. With only two buttons it is easy to use and after scanning all barcodes are quickly transferred through an included USB cable. When connected to transfer data the device is also charging ensuring the battery has power the next time you need it! OPN-2001, scanning at its purest.

Applications

The OPN-2001 enables organizations to easily integrate barcode scanning into their business process or service to optimize efficiency. The simplicity of this scanner enables people to use it with merely a short introduction, setting the bar low to start optimizing with scanners. Some of the uses include: sales and service, retail point-of-sale, inventory management, asset tracking, visitor registration and inventory.

How we describe the OPN-2001

The OPN-2001 is a simple and small laser scanner that can easily fit in your pocket. It is designed for easy use and convenient incorporation in any process or business model. The scanner will store the scanned data locally and transfer it through USB while charging. It easily stores up to 15,000 scanned barcodes, while only weighing 30 grams. This companion scanner comes with several applications.

Using the OPN-2001 is simple and straightforward. One button to scan the barcode and one button to correct any mistakes made, both actions providing visual feedback for smooth interaction.

Features

A few highlights why the OPN-2001 is the perfect companion to scan with:

  • Accurate 1D scanning
  • Small
  • Elegant design
  • Lightweight
  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • Scanning Capability
    • 1D
    • Barcode Symbology Supported
    • 1D:
      • JAN/UPC/EAN incl. add on
      • Codabar/ NW-7
      • Code 11, Code 39
      • Code 93
      • Code 128
      • GS1-128 (EAN-128)
      • GS1 DataBar (RSS)
      • IATA, Industrial 2 of 5
      • Interleaved 2 of 5
      • ISBN-ISSN-ISMN
      • Matrix 2 of 5
      • MSI/Plessey
      • UK/Plessey
      • S-Code
      • Telepen
      • Tri-Optic
      Postal code:
      • Chinese Post
      • Korean Postal Authority code
    • Light Source
    • Laser
    • Scan Rate
    • 100 scan/s
    • Depth of Field
      • 2.36" - 22.44"@39mil
      • 1.57" - 14.17"@20mil
      • 1.57" - 8.66"@10mil
      • 1.57" - 4.72"@6mil
      • 1.97" - 3.94"@5mil - at PCS 0.9 UPC
    • Scanning Distance
    • 569.98 mm
    • Cable Type Included
    • USB
    • Reading Angle (Skew)
    • 50°
    • Reading Angle (Pitch)
    • 30°
    • Reading Angle (Roll)
    • 20°
    • Maximum Ambient Light
    • 50000 lux
    • Drop Specification
    • 1.5 m / 5 ft drop onto concrete surface
  • Interfaces/Ports
    • Host Interface
    • USB
  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Height
    • 62 mm
    • Width
    • 32 mm
    • Depth
    • 16 mm
    • Weight (Approximate)
    • 30 g
  • Miscellaneous
    • Package Contents
      • Mini USB cable
      • Neck strap
    • Additional Information
    • USB Cable separate

    • Ingress Protection (IP) Rating
    • IP42
    • Application/Usage
    • Field Sales/Service
    • Retail
    • Inventory
    • Asset Tracking
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
